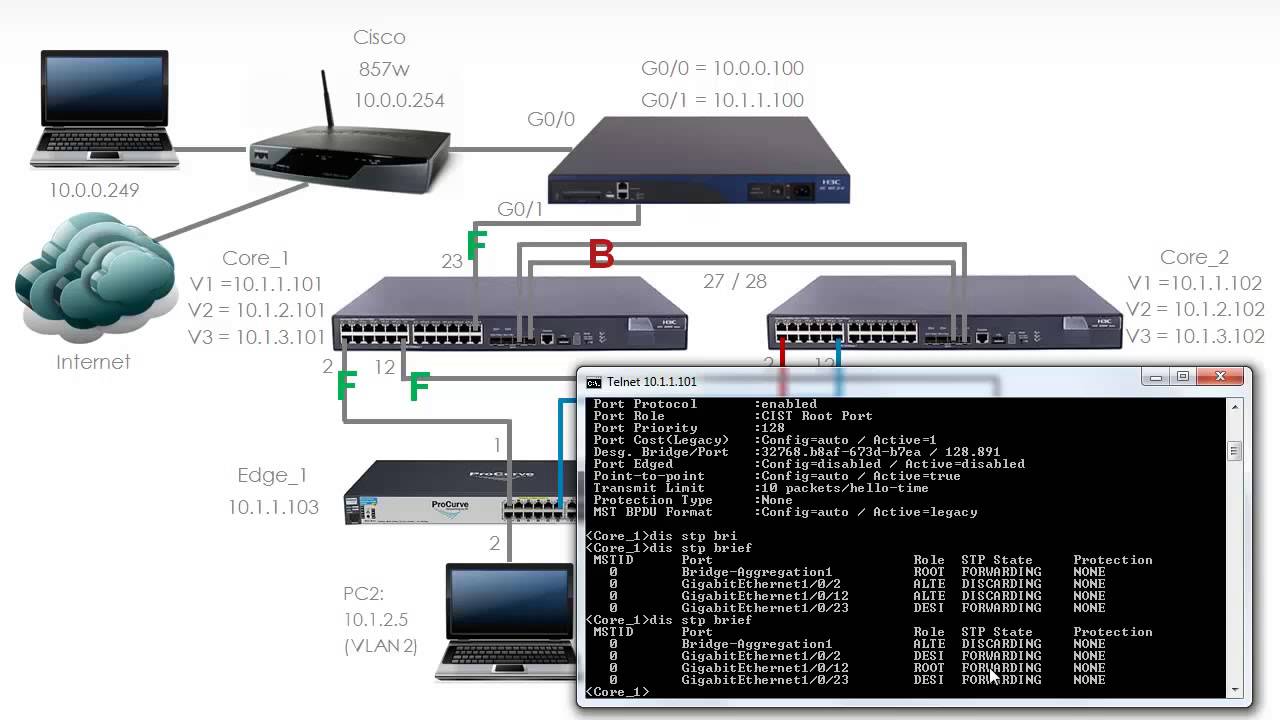

Is it as simple as 'enable Spanning Tree Protocol' and let it have at'er? Could anything negative happen? Our switches are HP Procurve 2524 and their setting for Spanning Tree are On/Off. Procurve 4204vl-1# configure Procurve 4204vl-1(config)# spanning-tree Procurve 4204vl-1(config)# spanning-tree priority 0 Procurve 4204vl-1(config)# write memory. Configuring the other switches: Procurve 4204vl-2# configure Procurve 4204vl-2(config)# spanning-tree Procurve 4204vl-2(config)# write memory. Hewlett Packard Enterprise Support Center HPE Support Center. .Implementation of Spanning-Tree Protocol on Procurve switches lacks elements that provide faster failover and greater redundancy— features such as PVST+, BackboneFast, and CrossStack UplinkFast. Supports pass through (flooding) of spanning tree BPDUs so that upstream devices on the network which support Spanning Tree Protocol can detect loops that ex ist on the ProCurve Switch 1700 interface.

Tree

Related Supplies, Accessories, & Products

Spanning Tree Priority Hp Procurve

more Product Information in pdf format

Spanning Tree Portfast Hp Switch

summary
The HP Procurve managed 24-port switch has 10/100BASE-TX autosensing per port and 2 open transceiver slots for media flexibility. The HP Procurve switch 2524 is ideal for low-cost, managed 10/100 connectivity with uplinks.
features
  • High performance switch design with non-blocking architecture features 9.6 Gbps switchfabric integrated on-chip
  • HP Auto-MDIX automatically adjusts for straight-through or crossover cables on all10/100 and 100/1000 ports
  • Stacking capability:
    • Single IP address management for a virtual stack of up to 16 switches including the1600M, 2400M, 2424M, 2512, 2524, 4000M, and 8000M
  • RMON and extended RMON provide advanced monitoring capabilities
  • Web interface allows users to configure the switch from any Web browser on thenetwork
  • IEEE 802.3ad standard trunking allows redundant connections between devices to becombined for more aggregate bandwidth between devices supporting Link AggregationControl Protocol (LACP)
  • VLAN support and tagging supports up to 30 port-based VLANs and dynamicconfiguration of 802.1Q VLAN tagging, providing security between workgroups
  • Group VLAN Registration Protocol (GVRP) allows automatic learning of VLANs whicheliminates manual configuration of VLANs
  • IP multicast (IGMP) prevents flooding of IP multicast traffic
  • Port security secures network and users from tampering by unauthorized users.
  • Spanning Tree Protocol provides redundant links while preventing network loops.
  • IEEE 802.1p prioritization delivers data to devices based on the priority and type oftraffic
  • TACACS+ eases administration of switch management security by using a passwordauthentication server (visit our Web site for availability of this free software update)
  • 802.1x and RADIUS network login controls access and provides authentication andaccountability for network security (visit our Web site for availability of this free softwareupdate)
key specifications
Ports
  • 24 RJ-45 10/100Base-TX ports (IEEE 802.3 Type 10Base-T; 802.3u Type 100Base-TX)
  • Two open transceiver slots, one RS-232C DB-9 download port
Memory
  • Packet buffer size: 6MB shared packet buffers
  • RAM/ROM capacity: 26MB
Processor
  • Processor type and speed: ARM7TDMI at 62.5 MHz Flash capacity: 2MB
Mounting
  • Mounts in a standard 19 inch rack (hardware included)
Performance
  • Latency: <10µs (LIFO)
  • Throughput: 6.6 million pps (64-byte packets)
  • Switch fabric speed: 9.6Gbps
  • Address table size: 4,096 entries
Electrical Characteristics
  • Heat dissipation/hour: 123 BTU/hr
  • Maximum wattage: 360W
  • Voltage: 100–127VAC/200–240VAC
  • Current: 2.4 A max/1.2 A max
  • Frequency: 50/60Hz
Communications
  • IEEE 802.3x Flow Control
Safety
  • EN 60950/IEC 950
  • UL 1950
  • CSA 950
  • Complies with NOM-019-SCFI-1994
Emissions
  • FCC Class A
  • EN 55022/CISPR-22 Class A
  • VCCI Class A
Immunity
  • Generic: EN 50082-1
  • ESD: IEC/EN 61000-4-2; 4 kV CD, 8 kV AD
  • Radiated: IEC/EN 61000-4-3; 3 V/m
  • EFT/Burst: IEC/EN 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
Environment
  • Operating
    • Temperature: 0°C to 55°C (32°F to 131°F)
    • Relative humidity: 15 to 95% to 40°C (140°F), noncondensing
  • Non-operating/storage
    • Temperature: -40°C to 70°C (-40°F to 158°F)
    • Relative humidity: 90% at 65°C (149°F), noncondensing
  • Shock and Vibration: HP759, HP760 (similar to EN 60068 IEC 68)
Warranty
  • Lifetime warranty as long as the customer owns the product, with next-business day advance replacement
Physical Characteristics
  • Dimensions: 17.4in x 8.0in x 1.8in (44.2cm x 20.3cm x 4.6cm)
  • Weight: 6.0lb (2.7kg)
